How to find your car stereo fuse location in any vehicle

Finding your car stereo fuse location is the first step in fixing a dead radio. Most vehicles house these fuses in an interior panel or under the hood. This guide shows you exactly where to look and how to identify the right fuse to get your music playing again.

Key Takeaways

• Consult the manual: Your owner’s manual is the fastest way to find the car stereo fuse location.
• Check common spots: Most fuses are under the dashboard, in the kick panel, or in the engine bay.
• Look for labels: Use the diagram on the fuse box cover to find labels like “RADIO,” “AUDIO,” or “ACC.”
• Check the head unit: Many aftermarket and factory radios have a small fuse plugged directly into the back.
• Use the right tools: A plastic fuse puller and a test light make the job safer and much easier.
• Safety first: Always turn off the ignition before pulling or testing any car fuses.
• Don’t upsize: Never replace a blown fuse with one that has a higher amp rating.

Introduction to Finding Your Car Stereo Fuse

Is your car radio suddenly silent? Does the screen stay dark even when you turn the key? Before you rush to a mechanic or buy a brand-new head unit, there is a simple check you can do yourself. You need to find your car stereo fuse location. Fuses are small, inexpensive parts designed to protect your car’s electronics. They act like a safety gate. If too much power flows through the wires, the fuse “blows” or breaks. This stops the electricity and prevents a fire.

Finding that one tiny fuse can feel like looking for a needle in a haystack. Every car make and model is a little bit different. A Ford might have its fuse box in a different spot than a Toyota. However, most manufacturers follow similar patterns. In this guide, we will walk you through every possible car stereo fuse location. We will teach you how to read diagrams, what tools you need, and how to tell if a fuse is actually bad. By the end of this article, you will be a pro at navigating your vehicle’s electrical system.

The First Place to Look: Your Owner’s Manual

Before you start pulling plastic panels off your car, reach for the glove box. Your owner’s manual is the ultimate map for your vehicle. It contains a dedicated section for “Fuses” or “Electrical Systems.” This section will have a list of every fuse box in the car. Even better, it will have a numbered diagram. This diagram tells you exactly which fuse controls the radio.

Visual guide about How to find your car stereo fuse location in any vehicle

Image source: i5.walmartimages.com

If you do not have a physical copy of your manual, do not worry. Most car brands have digital versions online for free. You can search for your “Year Make Model Owner’s Manual PDF” on Google. Once you open it, use the “Find” tool to search for “Radio,” “Audio,” or “Infotainment.” This saves you time and prevents you from pulling the wrong fuses.

Common Car Stereo Fuse Locations Inside the Cabin

Most fuses for interior electronics are located inside the passenger cabin. This makes them easy to reach. Here are the four most common places to find the interior fuse box.

Visual guide about How to find your car stereo fuse location in any vehicle

Image source: cdn11.bigcommerce.com

1. Under the Driver’s Side Dashboard

This is the most frequent car stereo fuse location. Sit in the driver’s seat and look down near your pedals. You will often see a small plastic cover on the wall to the left of the steering wheel or directly above the brake pedal. Some covers pop off with your fingers. Others might require a small flathead screwdriver to gently pry open. Once the cover is off, you will see rows of colorful fuses.

2. The Passenger Side Kick Panel

If it is not on the driver’s side, check the passenger side. The “kick panel” is the area where your feet would rest near the door. Manufacturers like Ford and Honda often hide the fuse box here. There is usually a plastic door that you can unclip. On the back of this door, you will often find a printed diagram showing which fuse is which.

3. Inside or Behind the Glove Box

Some European cars, like Volkswagen or BMW, put the fuse box inside the glove compartment. Open your glove box and look at the back wall. You might see a panel that slides out. In some cases, you have to push two tabs to let the glove box door drop down further than usual. This reveals the hidden fuse bank behind it.

4. The Side of the Dashboard

Open your front doors wide. Look at the flat side of the dashboard that is usually hidden when the door is closed. Many modern SUVs and trucks have a fuse panel tucked right there. It looks like a plastic cap. You can usually pop it off with a plastic trim tool or your fingernails. This is a very convenient car stereo fuse location because you can stand outside the car while you work on it.

Checking the Engine Bay Fuse Box

Sometimes, the radio fuse is not inside the car at all. High-power audio systems often have a primary fuse located under the hood. This box is usually much larger than the ones inside the cabin. It contains “Maxi” fuses and relays that handle more power.

Visual guide about How to find your car stereo fuse location in any vehicle

Image source: howstereo.com

To find this box, pop your hood and look for a black plastic box. It is usually located near the battery or the fender. These boxes usually have very strong clips to keep moisture out. You might need to press a tab or two to lift the lid. Pro tip: The diagram for these fuses is almost always printed on the underside of the plastic lid you just removed. Look for labels like “AUDIO,” “AMP,” or “BATT.”

The Hidden Fuse: The Back of the Stereo

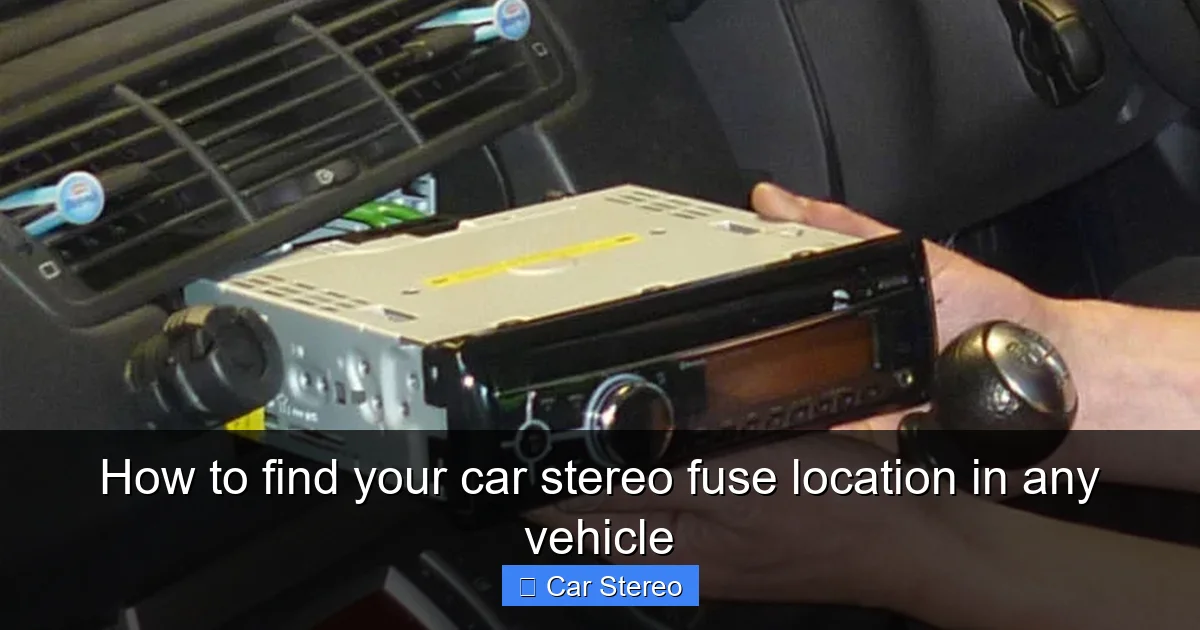

This is the car stereo fuse location that surprises most people. If you have checked all the fuse boxes and everything looks good, the problem might be on the radio itself. Almost all aftermarket radios (like Sony, Pioneer, or Alpine) have a small 10-amp or 15-amp fuse plugged directly into the back of the unit.

To get to this fuse, you will have to remove the stereo from the dashboard. This requires trim removal tools and sometimes specific “radio keys.” Once you slide the unit out, look at the back where the wiring harness plugs in. You will likely see a single blade-style fuse sticking out. If this fuse blows, the radio will not turn on even if the car’s main fuse box is perfectly fine.

Identifying the Correct Fuse by Labels

Once you find a fuse box, you will see dozens of small fuses. How do you know which one belongs to the radio? You need to read the abbreviations on the diagram. Here are the most common labels for a car stereo fuse:

• RADIO: The most obvious label.
• AUDIO: Used in many modern vehicles.
• ACC (Accessory): This fuse controls things that turn on with the first click of the key, including the radio.
• INFOTAINMENT: Common in cars with large touchscreens.
• AMP / AMPLIFIER: If your radio turns on but you hear no sound, this fuse might be the culprit.
• MEDIA: Often used in newer Ford or Chrysler vehicles.
• DOME: In some older cars, the radio and the interior “dome” lights share the same fuse.

Tools You Need to Locate and Test Fuses

While you can sometimes pull a fuse with your bare fingers, it is much easier with the right tools. Here is a small kit you should keep in your trunk.

1. Fuse Puller

This is a small plastic pair of tweezers. Most cars actually come with one for free! Look inside the lid of your engine bay fuse box. There is usually a white or yellow plastic tool clipped there. It is designed to grab the tiny “mini-fuses” that are hard to reach with fingers.

2. Multimeter or Test Light

A visual check is not always enough. Sometimes a fuse looks fine but is actually broken inside. A test light is the easiest tool. You clip it to a piece of bare metal (ground) and touch the tip to the two tiny metal dots on top of the fuse. If the light glows on both sides, the fuse is good. If it only glows on one side, the fuse is blown.

3. Flashlight

Fuse boxes are usually tucked away in dark corners. A small LED flashlight or your phone’s light is essential for seeing the tiny numbers and labels on the fuses.

Step-by-Step: How to Safely Check the Fuse

Follow these steps to ensure you do not cause any electrical damage to your vehicle while searching for the car stereo fuse location.

Step 1: Turn Off the Ignition

Never pull fuses while the car is running or while the key is in the “On” position. This can cause sparks or even damage your car’s computer. Turn the car off and remove the key.

Step 2: Locate the Panel

Use the list above to find the most likely fuse box. Start with the one under the driver’s side dash, as that is the most common spot for radio fuses.

Step 3: Match the Diagram

Hold the fuse box cover up and match the orientation of the diagram to the fuses in the box. If the diagram says “RADIO” is in slot 15, count the slots carefully. They are usually numbered.

Step 4: Pull and Inspect

Use your fuse puller to tug the fuse straight out. Hold it up to a bright light. Look at the metal “U” shape inside the plastic. If the metal is solid, the fuse is likely fine. If the metal is broken or there is a dark burn mark inside the plastic, the fuse is blown.

Step 5: Replace with the Same Amperage

If the fuse is blown, you must replace it with one of the exact same color and number. Fuses are color-coded. For example, 10-amp fuses are usually red, and 15-amp fuses are blue. Warning: Never put a 20-amp fuse where a 10-amp fuse belongs. This can cause your wires to melt or catch fire.

Common Car Stereo Fuse Locations by Brand

While every car is unique, many brands follow a specific layout. Here is a quick cheat sheet for popular manufacturers.

Toyota and Lexus

Toyota usually puts the radio fuse in the “Instrument Panel” fuse box. This is almost always located under the driver’s side dashboard, behind a small removable door. They also often have a “DOME” fuse in the engine bay box that provides constant power to the radio’s memory (so you don’t lose your station presets).

Honda and Acura

Honda loves the driver’s side kick panel. If you sit in the driver’s seat, it is right by your left ankle. They also use very small “low-profile” fuses, so make sure you have the right replacement size. Check the “ACC” or “RADIO” fuse slots.

Ford and Lincoln

Ford often places the interior fuse box in the passenger side kick panel. You might have to pull back a piece of carpet or unclip a plastic cover. In newer F150 trucks, the fuse box is often behind a panel on the side of the passenger-side footwell.

Chevrolet and GMC

GM vehicles often have three fuse boxes. One is in the engine bay, and there are often two inside. One is usually on the driver’s side edge of the dashboard, and the other might be on the passenger side. Look for the “INFO” or “RADIO” label.

Volkswagen and Audi

VW usually puts their fuses on the side of the dashboard. Open the driver’s door and pop off the plastic cap on the end of the dash. They also commonly have a dedicated fuse on the back of the radio unit itself, especially in models from the early 2000s.

What If the Fuse Is Not Blown?

If you find the car stereo fuse location and the fuse looks perfect, you might have a different problem. Do not panic. There are a few other things to check before you assume the radio is dead.

Check for a Second Fuse

Many modern cars have two fuses for the radio. One is for “Constant Power” (to keep the clock and settings) and one is for “Switched Power” (to turn the radio on with the car). One might be under the dash, and the other might be under the hood. Check your manual again to see if there are multiple “Audio” listings.

The “Reset” Trick

Sometimes the radio’s computer just gets “frozen.” If the fuse is good, try pulling it out for 60 seconds and then plugging it back in. This performs a hard reset on the head unit. This simple trick often fixes screens that are frozen or Bluetooth that refuses to connect.

Check the Ground Wire

If the radio has power but won’t turn on, it might have a loose ground wire. This is the wire that connects the radio to the metal frame of the car. This is more common with aftermarket radios that were installed by hand. If a screw comes loose, the circuit is broken, and the radio dies.

Troubleshooting Persistent Blown Fuses

Does your fuse blow again as soon as you replace it? This is a sign of a “short circuit.” This means a wire is touching metal or another wire where it shouldn’t. Do not keep putting new fuses in. You need to find the cause. Common causes include:

• Pinched wires: If you recently did work on your dash, a wire might be pinched between two metal brackets.
• Worn insulation: Over time, wires can rub against sharp metal edges until the plastic coating wears off.
• Spilled liquids: If you spilled a drink into the dash or the center console, it could cause a short in the radio’s buttons or wiring.
• Bad internal components: Sometimes the radio itself develops an internal short. In this case, the radio will need to be repaired or replaced.

Safety Precautions and Tips

Working on car electronics is generally safe, but you should still follow these rules.

Use plastic tools: When prying off fuse box covers, use plastic trim tools. Metal screwdrivers can scratch your interior or accidentally touch live wires.

Stay dry: Never work on your fuse box if your hands are wet or if it is raining into the cabin. Water and electricity do not mix.

Keep spares: Most cars have a few “spare” fuses tucked into the engine bay fuse box. Use these in an emergency, but remember to buy a new pack of fuses later to keep your spares full.

Conclusion

Locating your car stereo fuse is a skill every driver should have. It can save you a trip to the dealership and a lot of money. Remember to start with your owner’s manual to find the exact car stereo fuse location for your specific model. Check the interior panels first, then the engine bay, and finally the back of the radio itself.

Always use the correct tools and prioritize safety by turning off the ignition. If a new fuse fixes the problem, you are back in business! If the fuse keeps blowing, you may have a wiring issue that needs more investigation. By following this guide, you now have the knowledge to troubleshoot your audio system like a professional. Happy driving and enjoy your music!
