Easy ISO Connector Car Stereo Wiring Guide for Beginners (Color Codes + Install Steps)

Installing a new head unit is much easier when you are working with an ISO connector car stereo setup. This guide explains the basics of ISO 10487, common wire color codes, and the main installation steps beginners need to know before connecting a new radio.

If the wires behind your dashboard look confusing, you are not alone. The good news is that many aftermarket stereos use ISO-style connectors or can be connected with a vehicle-specific adapter harness, which makes the job much simpler than cutting into factory wiring. In this guide, you will learn what the ISO connector does, how Block A and Block B are used, how to identify the most common wire functions, and how to test your stereo before putting the dash back together.

Quick Answer

An ISO connector on a car stereo is a standardized plug format, commonly based on ISO 10487, used to connect power and speakers between a vehicle and a head unit. In most basic setups, Block A handles power, ground, ignition, illumination, and remote functions, while Block B handles speaker wiring. Many installs are easiest when you use a vehicle-specific adapter harness instead of cutting factory wires.

Key Takeaways

• Standardization: The ISO 10487 format helps make head unit swaps easier by using a common plug layout.
• Two-Block System: An ISO connector car stereo setup typically uses Block A for power and utility, while Block B is used for speakers.
• Color Coding: Common aftermarket wire colors, such as yellow for constant power and red for ignition, help reduce wiring mistakes, but always verify with the stereo manual and harness documentation.
• Safety First: Disconnect your vehicle’s negative battery terminal before working on stereo wiring.
• Adapters Save Time: If your car does not have factory ISO plugs, a vehicle-specific adapter harness is usually the easiest no-cut solution.
• Memory Issues: If the stereo loses its settings when the car turns off, the constant and switched power feeds may need to be checked.

What Exactly is an ISO Connector Car Stereo?

An ISO connector car stereo follows a commonly used international connector format known as ISO 10487. Before standardized connectors became common, many car makers used their own plug designs. That made radio upgrades more difficult and often led to manual wire splicing. The ISO format helps bridge the gap between a vehicle and an aftermarket stereo by using a more standardized layout.

The ISO connector typically consists of two rectangular plastic blocks with metal pins inside. These pins carry power and speaker signals. Many aftermarket stereos from major brands include an ISO-style harness or can be connected to one through an adapter. In practical terms, that means you can often connect your new radio with less guesswork, especially when you use the correct vehicle harness adapter.

Understanding Block A: The Power Block

Block A is usually the power and utility connector. This block handles the electrical functions your stereo needs to operate, such as constant power, switched power, ground, illumination, and remote output. Understanding Block A matters because mistakes here can lead to problems like a radio that will not turn on, a unit that loses memory, or a fuse that blows during testing.

Understanding Block B: The Speaker Block

Block B is used for speakers. It contains eight pins, which is enough for four standard speaker channels: front left, front right, rear left, and rear right. Each speaker uses a positive and negative wire. Correct polarity matters. If a speaker pair is wired backward, the system can sound weak or thin, especially in the bass range.

Simple ISO Connector Reference

Exact pin usage can vary by stereo brand, harness design, or vehicle adapter, so treat this as a beginner reference rather than a substitute for your wiring diagram.

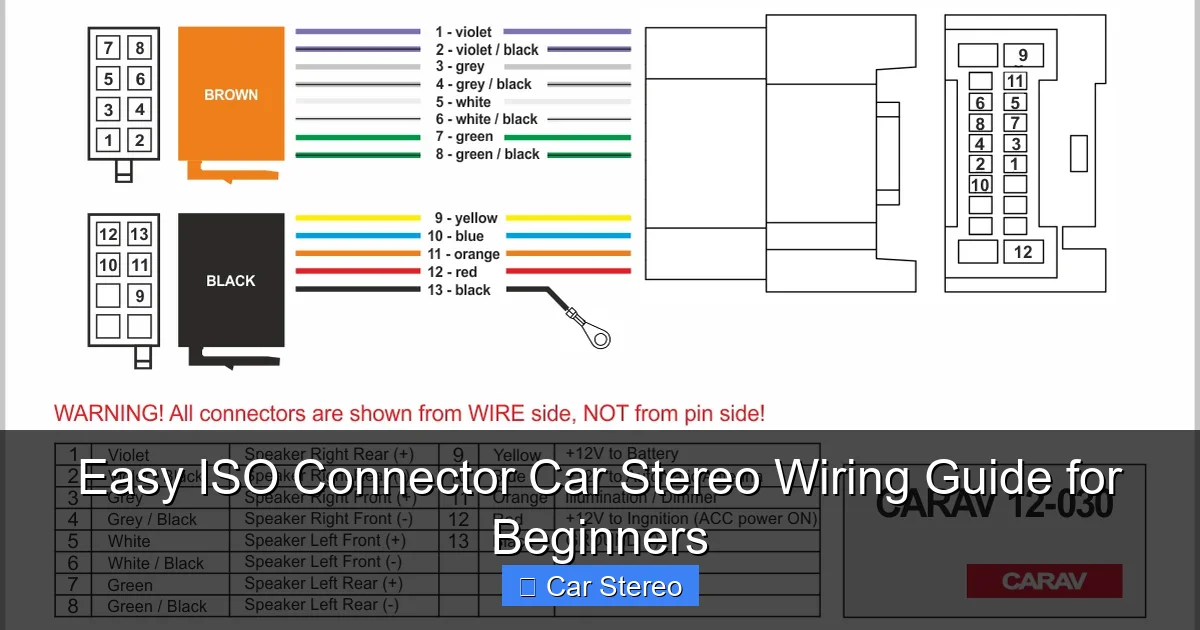

Section	Common Function	Typical Aftermarket Wire Color
Block A	Constant 12V memory power	Yellow
Block A	Switched 12V ignition power	Red
Block A	Ground	Black
Block A	Illumination/dimmer	Orange or Orange/White
Block A	Remote turn-on / power antenna	Blue or Blue/White
Block B	Front left speaker (+ / -)	White / White-Black
Block B	Front right speaker (+ / -)	Grey / Grey-Black
Block B	Rear left speaker (+ / -)	Green / Green-Black
Block B	Rear right speaker (+ / -)	Purple / Purple-Black

Before You Wire Anything

Before removing the old radio, check what type of connectors your car actually uses. Some vehicles already have ISO plugs behind the dash. Others need a vehicle-specific harness adapter. Some installs also need extra parts such as a fascia or dash kit, an antenna adapter, or a steering wheel control interface.

• Check the vehicle plug: Look up your car’s year, make, and model to see whether it already uses ISO connectors.
• Check the stereo harness: Confirm what harness came with the new head unit and whether it ends in ISO plugs.
• Watch for factory amplified systems: Some vehicles with factory amps or integrated electronics need extra interfaces.
• Plan for fitment parts: A single DIN or double DIN radio may also need a mounting kit or trim fascia.
• Keep factory wiring intact when possible: A harness adapter usually makes the install cleaner and easier to reverse later.

Tools You Will Need for the Job

Before you start pulling things apart, gather your tools first. Having everything ready will speed up the install and reduce the chance of damaging trim or rushing a wiring connection.

• Screwdriver Set: Phillips and flat-head drivers are commonly needed for trim screws and mounting hardware.
• Panel Removal Tools: Plastic pry tools help remove dashboard trim with less risk of scratching it.
• Wire Strippers: Useful if you need to connect or repair any wiring.
• Crimp Connectors or Solder Supplies: Helpful if you cannot use a full plug-and-play adapter.
• Electrical Tape or Heat Shrink Tubing: Used to insulate and protect wire joints.
• ISO Adapter Harness: If your car has a non-ISO factory plug, use a vehicle-specific adapter.
• Multimeter: Very useful for checking constant power, switched power, and ground.
• Socket or Wrench: Needed to disconnect the battery terminal safely.
• Zip Ties: Helpful for bundling loose wires behind the dash.
• Radio Removal Keys: Some factory stereos require special tools for removal.

Step 1: Preparing Your Vehicle for Installation

Working on stereo wiring is straightforward, but it still pays to be careful. Disconnecting power first helps reduce the chance of shorting a wire or blowing a fuse while the radio is out of the dash.

Disconnect the Battery

Open the hood and find the battery. Use a wrench or socket to loosen the nut on the negative terminal. Remove the cable and keep it positioned so it cannot spring back onto the battery post while you work.

Remove the Old Stereo

Use panel removal tools to gently lift the trim around the radio. Remove the screws or clips holding the old unit in place, then slide it forward carefully. Unplug the antenna lead and the factory wiring connectors to expose the space behind the dash.

Step 2: Identifying the ISO Connector Color Code

One reason ISO-style wiring is beginner-friendly is that many aftermarket stereo harnesses use common wire colors. Still, do not assume every vehicle-side wire follows the same pattern. The stereo harness, vehicle adapter harness, and factory wiring can differ, so always compare what you see with the radio manual and adapter documentation.

Block A (Power) Wire Colors:

• Yellow: Constant 12V power. This usually keeps memory settings and the clock active.
• Red: Switched 12V ignition power. This normally tells the radio when to turn on with the key.
• Black: Ground. This connects to chassis ground or the ground path provided in the harness.
• Orange or Orange/White: Illumination or dimmer input. This can dim the display when the headlights are on.
• Blue or Blue/White: Remote turn-on or power antenna output. This may trigger an amplifier or powered antenna.

Block B (Speaker) Wire Colors:

• White: Front left speaker (+).
• White/Black: Front left speaker (-).
• Grey: Front right speaker (+).
• Grey/Black: Front right speaker (-).
• Green: Rear left speaker (+).
• Green/Black: Rear left speaker (-).
• Purple: Rear right speaker (+).
• Purple/Black: Rear right speaker (-).

On many aftermarket harnesses, the negative speaker wires use the same base color with a black stripe. That makes it easier to keep the pairs organized while wiring.

Step 3: Connecting the ISO Connector Car Stereo

Once you have identified the harnesses, you can connect the stereo. The best method depends on what connectors your vehicle uses.

Option A: Direct Plug-and-Play

If your car already has matching ISO plugs, connect them to the stereo harness carefully and make sure each plug seats fully. Do not force anything. If the connector shape or pin arrangement does not match, stop and confirm compatibility before powering the unit.

Option B: Using a Wiring Harness Adapter

Many vehicles use manufacturer-specific plugs rather than factory ISO connectors. In that case, a vehicle-to-ISO adapter harness is usually the cleanest solution. One side plugs into the car, while the other side provides ISO-style connections for the new stereo harness. This approach helps you avoid cutting factory wiring and makes future removal easier.

Option C: Manual Splicing

If an adapter is not available, manual splicing may be necessary. Use the stereo manual and the vehicle wiring information to confirm each wire function before joining anything. Match power, ground, and speaker wires carefully, then secure each connection with crimp connectors or solder and protect the joint with heat shrink tubing or electrical tape. Avoid leaving any bare conductor exposed.

Step 4: Testing Your New Setup

Before mounting the stereo back into the dash, test everything. This is the easiest stage to fix a wiring issue.

Reconnect the Battery

Reconnect the negative battery cable and tighten it securely.

Perform the Power Test

Turn the key to the ACC or ON position. The stereo should power up. If it does not, recheck the constant power, switched power, and ground connections. Also inspect the radio fuse and the relevant vehicle fuse.

Perform the Sound Test

Play audio at low volume and use the balance and fader controls to confirm each speaker works in the correct location. If one speaker sounds weak or out of place, review that channel’s positive and negative connections.

Step 5: Final Mounting and Tidying Up

Once the stereo powers on and all speakers work correctly, finish the installation by organizing the wiring behind the dash.

Manage the Cables

Bundle excess wire with zip ties and route it so it does not get pinched when the stereo slides back in. Make sure the antenna lead is fully seated. Some vehicles also need an antenna adapter, so verify that connection before closing everything up.

Secure the Head Unit

Slide the stereo into its cage or mounting bracket and secure it according to the mounting hardware provided. Reinstall any screws, then refit the trim panels. A quick final test before snapping all trim fully into place can save time if something has come loose.

Advanced Tips for a Better Experience

The wiring itself may be simple, but a few extra checks can make the finished install cleaner and more reliable.

Check for Steering Wheel Control Compatibility

If your car has steering wheel audio buttons, they may not work automatically with a standard stereo swap. A dedicated steering wheel control interface is often required between the vehicle and the new head unit. If retaining those controls matters to you, confirm compatibility before buying parts.

The “Red and Yellow” Swap Check

A common problem after installation is a radio that loses presets or clock settings when the ignition is turned off. In many cases, the constant 12V and switched 12V feeds are assigned differently between the stereo harness and the vehicle adapter. Check the red and yellow wires and compare them with your harness instructions before making changes.

Parking Brake and Extra Signal Wires

Some multimedia head units include additional wires for functions such as a parking brake input, reverse signal, or camera trigger. These are separate from the basic ISO power and speaker connections. If your stereo has these features, follow the installation guide that came with the unit rather than guessing wire function by color alone.

Factory Amplifiers and CAN-Bus Systems

Not every vehicle is a simple two-plug install. Some factory audio systems include an external amplifier, data-bus integration, or retained accessory power behavior that needs an additional interface module. If the stereo powers up but you get no sound, limited sound, or unusual behavior, double-check whether your vehicle needs more than a basic harness adapter.

Troubleshooting Common ISO Connector Issues

Even a careful install can need a bit of diagnosis. These are some of the most common beginner issues.

The Radio Won’t Turn On

Check the unit fuse and the related vehicle fuse first. Then use a multimeter to verify that the constant power wire has voltage and that the switched power wire receives voltage when the key is in ACC or ON. If both are correct, recheck the ground connection and harness seating.

The Radio Turns On but Loses Its Settings

This usually points to a memory power issue. The most common cause is the constant and switched power feeds being reversed or incorrectly assigned in the harness. Recheck the yellow and red wire functions against your stereo and adapter instructions.

No Sound from One Speaker

If one speaker does not play, inspect the speaker pair in Block B or in your splice connections. A loose pin, disconnected wire, or damaged speaker lead can cause one channel to drop out. Also confirm that the balance and fader settings are centered during testing.

Thin or Weak Sound

Weak sound can happen when a speaker pair is wired with reversed polarity. Compare the positive and negative wires for that speaker and correct them if needed.

Whining Noise When You Accelerate

This is often described as alternator whine. Start by checking the ground path and ensuring all connections are secure. If the stereo or any amplifier uses a poor ground, noise can enter the system more easily.

The Radio Stays On After the Key is Removed

This typically means the ignition feed is not connected as expected, or the vehicle manages accessory power differently than the stereo expects. Verify the switched power source and confirm you have the correct harness or interface for your exact vehicle.

Frequently Asked Questions

What is an ISO connector on a car stereo?

It is a standardized connector format commonly used to link a vehicle’s wiring to an aftermarket head unit. In basic installations, it separates power functions and speaker connections into organized plug blocks.

Are all ISO car stereo connectors wired the same?

No. The connector format is standardized, but vehicle-side wiring, adapter harness pin assignments, and extra functions can still vary. Always verify with the stereo manual and the harness instructions for your specific vehicle.

What do the yellow and red wires do on a car stereo?

On many aftermarket stereos, yellow is the constant 12V memory feed and red is the switched 12V ignition feed. If these are assigned incorrectly, the radio may not turn on properly or may lose its saved settings.

Why does my car stereo lose its settings when I turn the car off?

The most common cause is a problem with the constant power feed. Check the yellow and red wire assignments and compare them with the stereo harness and vehicle adapter documentation.

Do I need an adapter harness for an ISO connector car stereo?

If your vehicle does not already have matching ISO plugs, a vehicle-specific adapter harness is usually the easiest and cleanest option. It also helps preserve the factory wiring.

Can I install a new car stereo without cutting factory wires?

In many cases, yes. A vehicle-specific harness adapter, plus any required antenna or steering wheel control interfaces, often allows a no-cut installation.

Conclusion

Installing an ISO connector car stereo is one of the more approachable car audio upgrades for beginners. The main ideas are simple: understand what Block A and Block B do, verify wire functions before connecting anything, and use a proper adapter harness whenever possible.

If your stereo powers on, keeps its memory, and all four speakers play in the correct positions, you are on the right track. Take your time, double-check your wiring, and test before final mounting. That approach solves most beginner mistakes before they become frustrating dash rework.
