In this guide, you’ll discover where to plug in your OBD2 scanner for effective vehicle diagnostics. We will provide you with step-by-step instructions and practical tips to make the process easy and efficient. Understand the importance of this tool and enhance your vehicle maintenance today!
Key Takeaways
- Location Matters: The OBD2 port is typically located under the dashboard or near the driver’s side seat.
- Check Compatibility: Ensure your scanner is compatible with your vehicle’s make and model for accurate diagnostics.
- Power Source: Most OBD2 scanners draw power from the vehicle’s OBD2 port, making battery use unnecessary.
- Secure Connection: A proper connection is essential for accurate readings; ensure the scanner is firmly plugged in.
- Follow Protocol: Always follow the manufacturer’s instructions for both the vehicle and the scanner for best results.
- Troubleshooting Tips: If the scanner does not power on, check the fuse and the connection to the OBD2 port.
- Regular Use: Regularly using an OBD2 scanner can help maintain your vehicle’s health and prevent costly repairs.
Where to Plug in OBD2 Scanner for Accurate Vehicle Diagnostics
When it comes to understanding your vehicle’s health, an OBD2 scanner is an invaluable tool. This guide will walk you through everything you need to know about **where to plug in your OBD2 scanner**. We will cover the location of the OBD2 port, how to connect your scanner, and practical tips for effective diagnostics.
Understanding OBD2 Scanners
Before we dive into the specifics, let’s briefly discuss what an OBD2 scanner is. OBD2 stands for On-Board Diagnostics II, which is a standardized system that allows vehicles to communicate their health to an external device. An OBD2 scanner reads diagnostic trouble codes (DTCs) and provides valuable information regarding your vehicle’s performance.

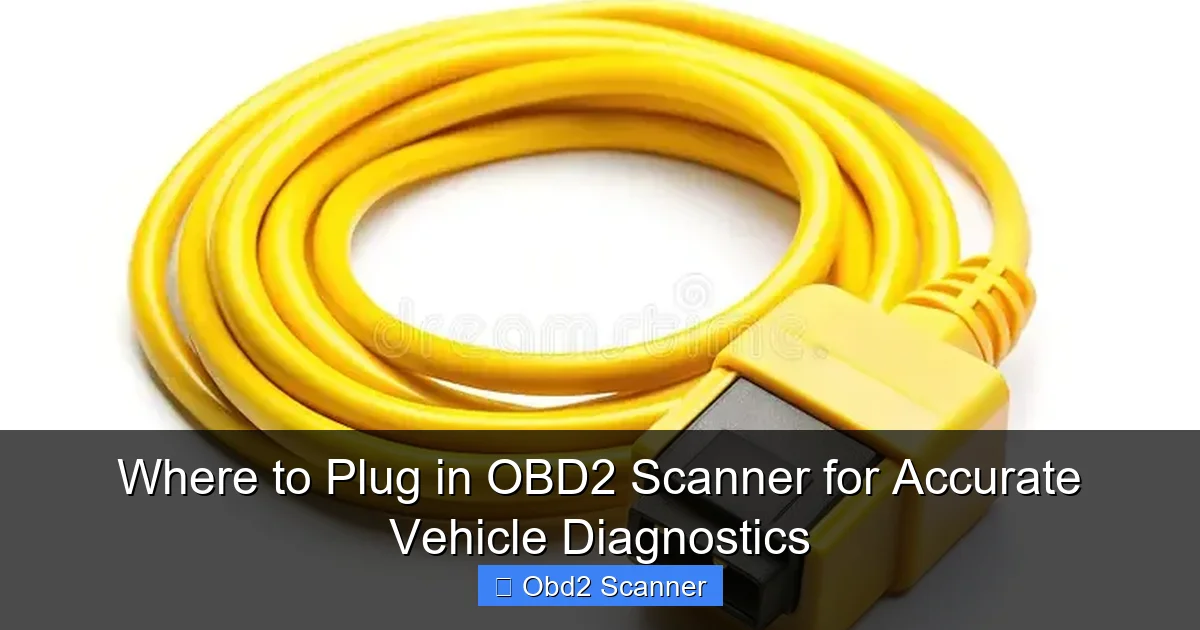

Visual guide about Where to Plug in OBD2 Scanner for Accurate Vehicle Diagnostics
Image source: totalcardiagnostics.com
By using an OBD2 scanner, you can monitor your vehicle’s engine, transmission, and emissions system. This can help you identify issues before they escalate into costly repairs.

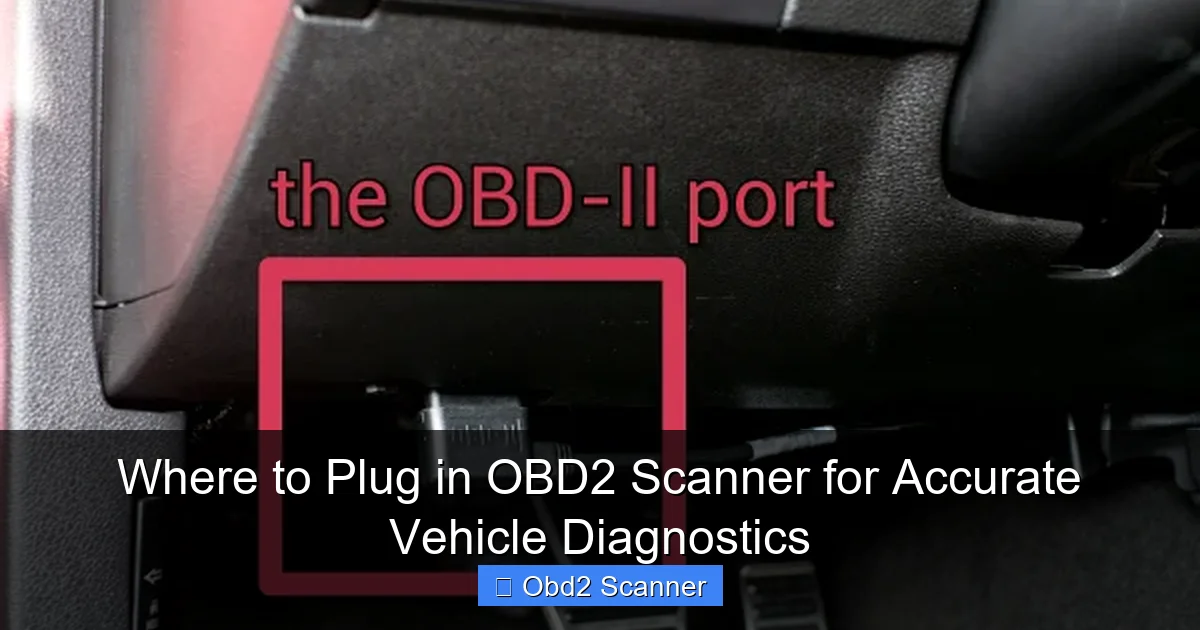

Step 1: Locate the OBD2 Port
The first step in using your OBD2 scanner is to locate the OBD2 port. This port is typically found in one of the following locations:
Visual guide about Where to Plug in OBD2 Scanner for Accurate Vehicle Diagnostics
Image source: thumbs.dreamstime.com
- Under the dashboard, near the steering column
- Near the driver’s side seat
- In the center console, just above the cup holders
- Under the glove compartment
If you’re having trouble finding it, consult your vehicle’s owner manual, which will usually have a section dedicated to the OBD2 port’s location.
Step 2: Prepare Your Vehicle
Before plugging in the scanner, ensure your vehicle is in the right state:

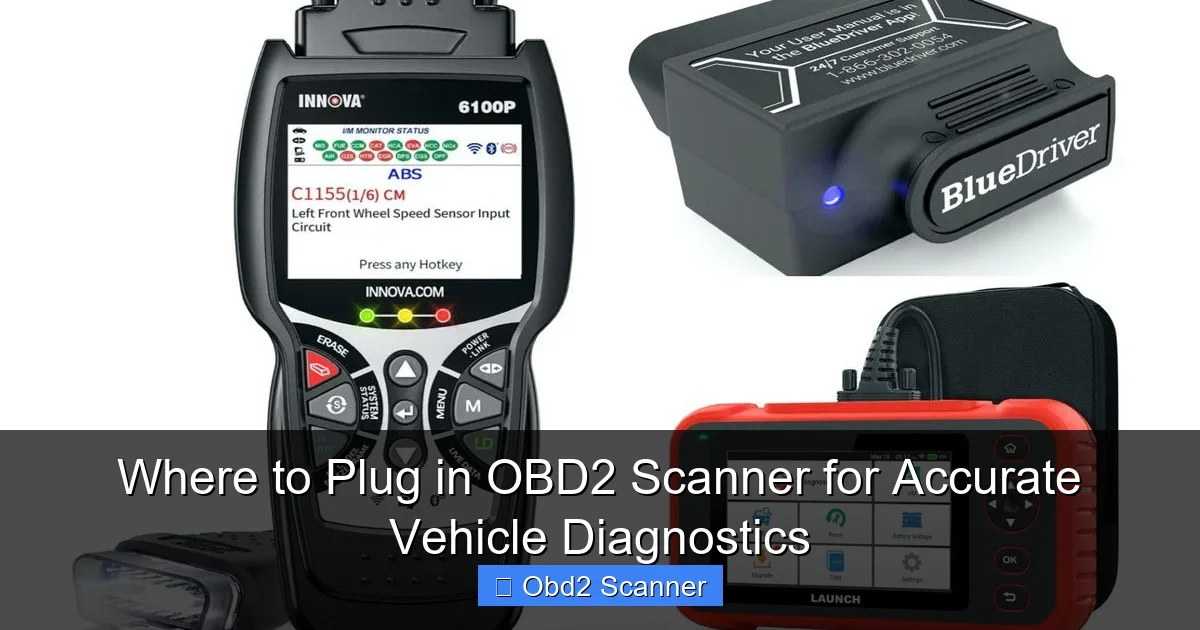

Visual guide about Where to Plug in OBD2 Scanner for Accurate Vehicle Diagnostics
Image source: automechanictrainingcenter.com
Check the Ignition
Your vehicle’s ignition should be in the “ON” position, but the engine does not need to be running. This allows the scanner to communicate with the vehicle’s computer.
Ensure Safety
Make sure your vehicle is parked securely with the parking brake engaged. This will prevent any accidental movement while you’re working.
Step 3: Plug in the OBD2 Scanner
Now that you have located the OBD2 port and prepared your vehicle, it’s time to plug in your scanner:
Insert the Scanner
Carefully insert the scanner’s connector into the OBD2 port. Make sure it fits snugly. A loose connection may lead to inaccurate readings.
Check for Power
Once plugged in, the scanner should power on automatically. If it doesn’t, check the following:
- Ensure the ignition is in the “ON” position.
- Check the OBD2 port for any debris or damage.
- If the scanner still doesn’t power on, consult the user manual of the scanner for troubleshooting steps.
Step 4: Use the Scanner
With your scanner plugged in and powered on, follow these steps to diagnose your vehicle:
Select the Diagnostic Option
Most OBD2 scanners will display a menu upon startup. Select the diagnostic option to begin scanning your vehicle. This might be labeled as “Read Codes” or “Scan Vehicle.”
Read Diagnostic Trouble Codes
The scanner will communicate with your vehicle’s onboard computer and retrieve any stored DTCs. Make note of these codes, as they will help you identify any issues. You can look up the codes online or in your scanner’s manual for further information.
Clear Codes (if necessary)
If you have resolved any issues indicated by the DTCs, you may wish to clear the codes. This can often be done with a simple menu option on your scanner. Remember, only clear codes after addressing the underlying problems.
Practical Tips for Effective Use
- Keep Your Scanner Updated: Regularly update your scanner’s software to ensure it can read the latest diagnostics.
- Learn Common Codes: Familiarize yourself with common trouble codes for your vehicle model.
- Regular Check-ups: Use the scanner periodically to maintain your vehicle’s health.
- Document Findings: Keep a record of all DTCs and repairs for future reference.
Troubleshooting Common Issues
If you encounter issues while using your OBD2 scanner, consider the following troubleshooting steps:
Scanner Not Powering On
- Check the ignition position. It should be in the “ON” position.
- Inspect the OBD2 port for any debris or damage.
- Try using a different OBD2 scanner if available.
Inaccurate Readings
- Ensure the scanner is compatible with your vehicle.
- Check the connections again; they should be secure.
- Consult the scanner manual for specific troubleshooting tips.
Conclusion
Using an OBD2 scanner is a straightforward process that can significantly enhance your vehicle maintenance routine. By knowing **where to plug in your OBD2 scanner**, you can access crucial information about your vehicle’s health. Always remember to follow the provided guidelines for the best results. Regularly using your OBD2 scanner not only helps in diagnosing issues but also assists in preventing future problems. Happy scanning!
